Shelly Shutter

Device image

Device identification

Device name: Shelly Shutter
Device model: S3SH-0A2P4EU
Device SSID: ShellyShutter-XXXXXXXXXXXX
BLE Model ID: 0x1039

Short description

Shelly Shutter is a small form factor cover controler with power measurement, which allows remote control of shutter, shades and blinds through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The device supports Venetian blinds.

Shelly Shutter can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

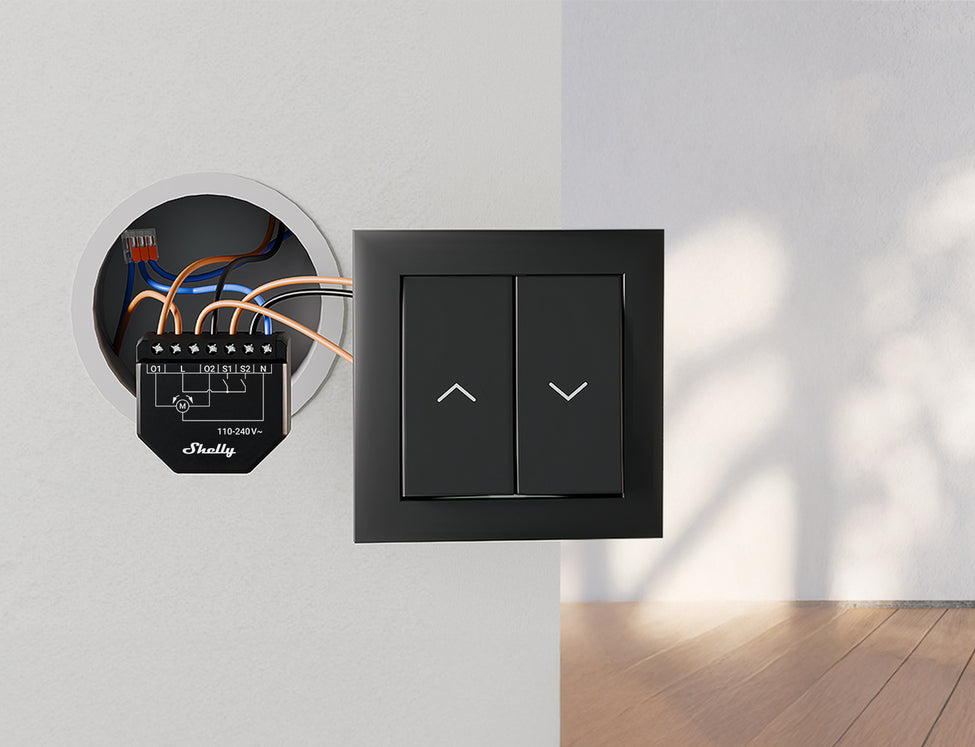

It can be retrofitted into standard electrical wall boxes, behind switches for covers.

Shelly Shutter has embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Main features

Smart Cover Controler with Power Measurement: Acts as a smart cover controller with the added capability of measuring power consumption, allowing you to monitor the energy usage of connected covers, shutters or blinds.

Compact Design: Designed as a small form factor switch, making it suitable for retrofitting into standard electrical wall boxes, behind power sockets, light switches, or other confined spaces.

Remote Control: Enables remote control of electric appliances via a mobile phone, tablet, PC, or home automation system.

Local and Cloud Control: Can function independently in a local Wi-Fi network and can also be operated through cloud home automation services.

Improved Processor: Upgraded with an improved processor and Zigbee connectivity for enhanced performance.

Remote Access: Allows remote access, control, and monitoring from any location with internet connectivity, provided the device is connected to a Wi-Fi router and the internet.

Embedded Web Interface: Features an embedded web interface for monitoring, control, and adjustment of settings.

BLE Gateway: Bridge between your Shelly BLU devices and the wider Shelly ecosystem. It receives Bluetooth signals and sends them to the cloud or locally to another non-bluetooth device.

Wi-Fi Range extender for IoT devices: A Wi-Fi extender is employed to expand the reach of your Wi-Fi network by receiving your current Wi-Fi signal, enhancing its strength, and then transmitting the enhanced signal over a wider area.

Scripting: https://shelly-api-docs.shelly.cloud/gen2/Scripts/ShellyScriptLanguageFeatures/

Wide range of integrations: The device can be integrated with 3rd party home systems, documented HTTP API, MQTT(s), Web Hooks over HTTP and HTTPS, UDP

KNX: Supports KNXnet/IP communication

Schedules: Allows scheduling of complex operations to be executed in predefined time window. Users can specify time windows based on date, time of day, weekdays, hours, minutes and seconds.

Virtual Components: https://shelly-api-docs.shelly.cloud/gen2/DynamicComponents/Virtual/

KNX net/IP support: https://shelly-api-docs.shelly.cloud/gen2/Integrations/KNX/

Venetian blinds mode: The Device enables remote control of motorized blinds, roller shutters, venetian blinds, awnings, etc. It measures power consumption of the connected device. It is recommended to use only motors with electronic or mechanical limit switches. The motor limit switches must be set correctly before connecting the Device to the motor.

Use cases

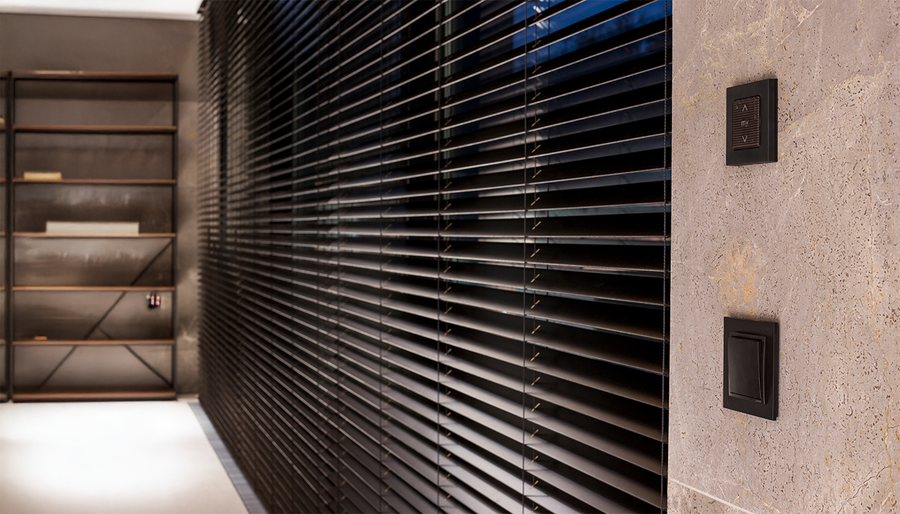

Blinds Control: Use it to remotely control and automate the operation of various shutter, blinds and awnings.
Power Monitoring: Monitor the power consumption of connected shutters, blinds and awnings in real-time. This is useful for understanding energy usage patterns and promoting energy efficiency.
Home Automation: Integrate the Shelly Shutter into your home automation system to create custom scenes and schedules for your devices.
Energy Efficiency: Leverage the power measurement feature to identify energy-hungry appliances and make informed decisions to improve overall energy efficiency in your home.
Remote Monitoring: Keep an eye on your devices even when you're away from home. The remote access feature allows you to monitor and control connected shutters, blinds and awnings from anywhere with internet connectivity.

Main applications

Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college

Integrations

Amazon Alexa supported capabilities

Yes

Google Smart Home supported traits

Yes

Samsung SmartThings supported capabilities

Yes

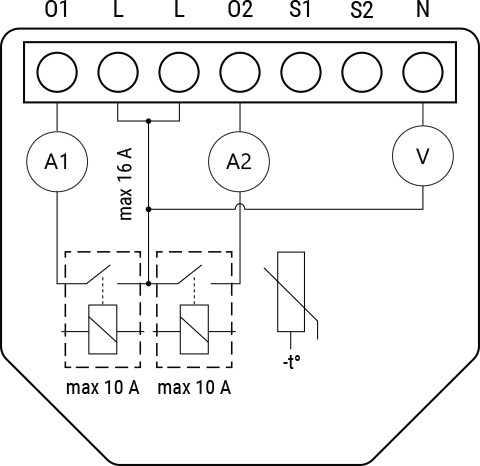

Simplified internal schematics

Device electrical interfaces

Inputs

2 switch/button inputs on screw terminal: S1 and S2
3 power supply inputs on screw terminals: 1 N (+) and 2 L (Ʇ)

Outputs

2 relay outputs with power measurement on screw terminal

Add-on interface

Shelly proprietary serial interface

⚠CAUTION! High voltage on the add-on interface when the Device is powered!

Connectivity

Wi-Fi
Bluetooth

Safety functions

Overheating protection
Overvoltage protection
Overcurrent protection
Overpower protection
Obstacle detection
Safety switch

Supported load types

Inductive - Bi-directional AC motors for roller shutter, blinds (including Venetian blinds) and awnings with compensated power factor

User interface

Inputs

One (Control) button
- Pres once shortly after the blu button device is in pairing to connect the two devices together
- Press and hold for 5 seconds to enable Device access point and Bluetooth connection.
- Press and hold for 10 seconds to factory reset the Device.

Outputs

LED (monocolor) indication
- AP (Access Point) enabled and Wi-Fi disabled:
  1 second ON / 1 second OFF
- Wi-Fi enabled, but not connected to a Wi-Fi network:
  1 second ON / 3 seconds OFF
- Connected to a Wi-Fi network:
  Constantly ON
- Cloud is enabled, but not connected:
  1 second ON /5 seconds OFF
- Connected to Shelly Cloud:
  Constantly ON
- OTA (Over the Air Update):
  ½ sec ON / ½ second OFF
- Button pressed and held for 5 seconds:
  ½ second ON / ½ second OFF
- Button presses and held for 10 seconds:
  ¼ second ON / ¼ second OFF

The list above starts with the initial device status and the lowest priority. Every next state cancels the previous one.

Specifications

Quantity	Value
Physical
Size (HxWxD):	37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 inch
Weight:	30 g / 1.06 oz
Screw terminals max torque:	0.4 Nm / 3.5 lbin
Conductor cross section:	0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length:	6 to 7 mm / 0.24 to 0.28 in
Mounting:	Wall box
Shell material:	Plastic
Shell color:	Black
Terminals color:	Black
Environmental
Ambient working temperature:	-20°C to 40°C / -5°F to 105°F
Humidity:	30% to 70% RH
Max. altitude:	2000 m / 6562 ft
Electrical
Power supply:	110-240 V~ 50/60 Hz
Power consumption:	< 1.4 W
External protection:	Tripping characteristic B or C, 16A max. rated current, min. 6 kA interrupting rating, energy limiting class 3
Output circuits ratings
Max. switching voltage:	240 V~
Max. switching current AC:	4 A for motors with compensated power factor (inductive loads)
Supported motor type:	Single-phase AC motors
Required limit switches:	Electronic or Mechanic
Sensors, meters
Voltmeter (AC):	Yes
Ammeter (AC):	Yes
Internal-temperature sensor:	Yes
Radio
Wi-Fi
Protocol:	802.11 b/g/n
RF band:	2412 - 2472 МHz
Max. RF power:	< 20 dBm
Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth
Protocol:	4.2
RF band:	2402 - 2480 MHz
Max. RF power:	< 4 dBm
Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Microcontroller unit
CPU:	ESP-Shelly-C38F
Flash:	8MB
Firmware capabilities
Schedules:	20
Webhooks (URL actions):	20 with 5 URLs per hook
Scripting:	Yes
MQTT:	Yes

Basic wiring diagrams

Cover mode

Legend

Terminals		Wires
O1, O2:	Load circuit output terminals	N:	Neutral wire
N:	Neutral terminal	L:	Live wire (110-240 V~)
L:	Live terminal (110-240 VAC)
S1, S2	Switch input terminals
